SafeHold® Lifting Magnets

Eriez® SafeHold® Permanent Lifting Magnets are ideal for carrying semi-finished products such as machined parts, castings, press molds, steel plates, bars, tubes and more without slings, hooks or cables. These magnets are available in ceramic and Rare Earth models, lift up to 10,000 pounds, need no outside power source and can be turned on and off with ease. Eriez offers a variety of SafeHol...

title
title

Eriez® SafeHold® Permanent Lifting Magnets are ideal for carrying semi-finished products such as machined parts, castings, press molds, steel plates, bars, tubes and more without slings, hooks or cables. These magnets are available in ceramic and Rare Earth models, lift up to 10,000 pounds, need no outside power source and can be turned on and off with ease.

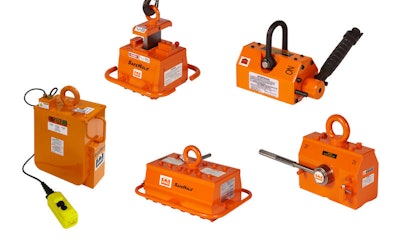

Eriez offers a variety of SafeHold Lifting Magnets to satisfy customers’ unique requirements. The SafeHold line includes the RPL Series, XPL Series, EPL Series, APL Series and MPL Series.

SafeHold RPL Series Lifting Magnets handle both round and flat materials. Five models are available with capacities up to 7,000 pounds on flat materials and 1,750 pounds on round materials.

SafeHold XPL Series Lifting Magnets handle both flat and round materials. Six models are available with capacities up to 5,000 pounds on flat materials and 3,700 pounds on round materials.

SafeHold EPL Series Lifting Magnets handle flat materials. Four models are available with capacities up to 10,000 pounds on flat materials.

SafeHold APL Series Lifting Magnets handle flat materials. Four models are available with capacities up to 5,800 pounds on flat materials.

SafeHold MPL Series Lifting Magnets handle both flat and round materials. One model is offered with a capacity up to 4,500 pounds on flat materials and 3,000 pounds on round materials.

Making the most efficient and economical selection of lifting magnets requires a full knowledge of the application. Eriez experts work with customers to match the right SafeHold Lifting Magnet to their specific needs. To learn more about SafeHold Lifting Magnets and download the Eriez Lift Magnet Selection Guide, visit http://eriez.com/Markets/Index/Safeholdpermanentliftingmagnets.

When properly installed and operated, SafeHold Lifting Magnets provide greater safety than other mechanical material handling devices. To download a PDF that covers general SafeHold Lifting Magnets safety guidelines, go to http://eriez.com/Content/Brochure/SafeholdPermanentLiftingMagnets/generalsafetyguidelinesforsafeholdmagnets.

Eriez is recognized as world authority in separation technologies. The company’s magnetic lift and separation, metal detection, flotation, materials feeding, screening, conveying and controlling equipment have application in the process, metalworking, packaging, plastics, rubber, recycling, mining, aggregate and textile industries. Eriez manufactures and markets these products through 12 international facilities located on six continents. For more information, call toll-free (888) 300-ERIEZ (3743) within the U.S. and Canada. For online users, visit www.eriez.com or send email to eriez@eriez.com. Eriez World Headquarters is located at 2200 Asbury Road, Erie, PA 16506
