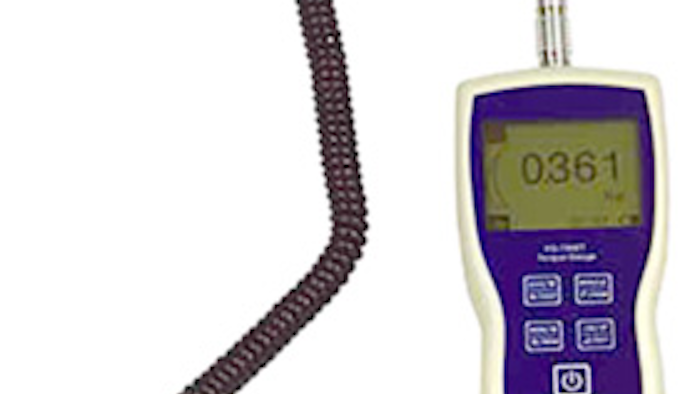

FG-7000T Digital Torque Gauge

Introducing FG-7000T Digital Torque Gauge
Provides testing flexibility with external torque sensor input

For Immediate Release: Measure the frictional resistance between a rubber slider mounted on the end of a pendulum arm and the test surface.

Torque sensors with standard chuck adapter are immediately recognized when connected to the display base and are available for your specific testing needs in 1 N-m (9 in-lb) 5 N-m (44 in-lb), 10 N-m (88 in-lb) capacities. The multiple-language FG-7000T’s provides menu programming for easy selection and set-up of the instrument to your desired requirements.

Features
Display operates in numerical or graph modes, both include a directional bar graph
Graph mode combined with set point tolerances provide instant recognition of process relation to upper and lower limits
Four Modes of Operation: Peak, First Peak, Preset or Track Mode
Memory with group categorization to easily separate your tests for review and later download
Free software for viewing, graphing and analyzing data on PC
Large, Backlit, Auto-Reversible display with various icons of test status aids user during testing
Programmable High/Low tolerances combined with comparator NPN/PNP output allow usage in quality control production lines

More Information: The display has two selectable operations, numerical view with directional bar graph or graphical view with directional bar graph. In graphical view when alarm tolerances are set, the process is plotted in relation to the upper and lower limit graph lines.
Combined with the go/no go icons, a simple pass/fail determination is recognized. These high-tech instruments can data log a reading at the push of a button for simple data acquisition or be set to continuous data storage. Data can be viewed on the screen, sent to the optional printer, or loaded to be analyzed and graphed on the free software program. The 1,000 point memory with definable groups allows for multiple tests to be recorded and easily separated upon loading.
