Larson Electronics has announced the release of a 2400 watt skid mount five stage electric light mast that features a rotating boom which allows for 360° of rotation, a removable mast head, and a cube frame with skid pockets with 4-corner pick eyes for easy transportation.

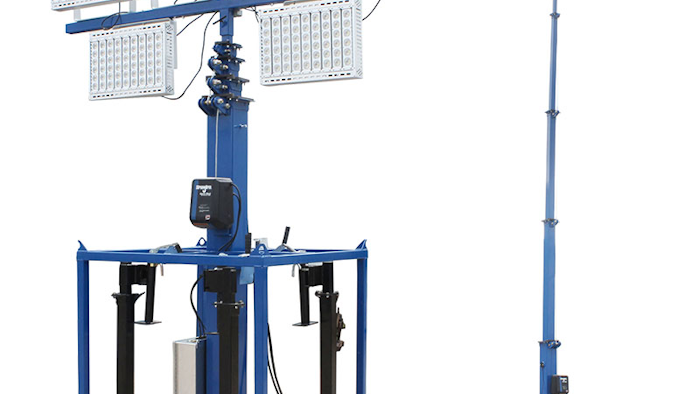

The LM-30-8-5S-6X400LTL-LED-EW-SM-RD-10KVAPDS five stage telescoping steel light mast with electric winch from Larson Electronics is designed to quickly and safely deploy 2400 watts of intense LED lighting in locations where elevated illumination is needed for maximum area coverage. This mast is equipped with six 400 watt LED lamps that produce a wide spread of intense white light, allowing this unit to effectively cover large work areas with high quality illumination. This light boom can be extended to 30’ for maximum area coverage, collapsed to 11’ and is constructed of square steel tubing in different dimensions for each section. The mast is elevated using an included 3,500 lbs. electric winch with 3/16” galvanized braided cable. The light heads on this tower are wet area suitable high output LED fixtures that produce a combined total of approximately 312,000 lumens at 2400 watts. These lamps have a copper free aluminum alloy body that is powder coated for added durability and aesthetics.
The thirty-foot tower and assembly is powder coated with a glossy blue finish for corrosion resistance and aesthetics. The mast is bolted onto a 1/8” thick carbon steel plate via six ½” anchor bolts. The mast and controls are secured within a cube-style frame constructed of 2” by 2” by 1/8” thick and measuring 48” wide by 48” long by 53” tall. Four 4.25’ slide out outriggers with 1,200 lbs. manual crank leveling jacks allow operators to anchor the unit down, providing stability during deployment. Eight skid pockets allow this unit to be picked up from all four sides, and four-corner eyelets allow for stable deployment via crane operation. A 96” wide and 2” by 2” by ¼” thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the six LED light fixtures.
The mast is operated via push button switches within the cube frame, allowing operators to raise or lower the mast with the push of a button. All controls and electronics are housed within an aluminum NEMA 3R control panel. The lights are banked on two individual circuits, with the left half on one circuit and the right half on another, allowing operators to power only three fixtures or all six fixtures. This lighting system is equipped with 200’ of 10/4 chemical and abrasion resistant cord that is fitted with an industrial grade cord cap for easy connection to local electrical circuits. Cable management is provided by a manual roll up drum mounted within the steel cube frame that provides storage for the 200’ power cable when not in use.
“This new design of our already popular light masts provides operators with a more mobile solution of lighting,” said Rob Bresnahan with Larsonelectronics.com. “This light plant is portable, durable, and reliable, and is built for serious industrial applications.”
Larson Electronics carries an extensive line of LED light towers, portable power distributions, explosion proof lights for hazardous locations, portable work lights and industrial grade LED area lights. You can view Larson Electronics’ entire line of lighting by visiting them on the web at Larsonelectronics.com. You can also call 1-800-369-6671 to learn more or call 1-214-616-6180 for international inquiries.
