In the world of industrial distribution, providing value to your customers goes beyond simply supplying components — it’s about offering solutions that enhance reliability, performance and safety. Among the motion control and linkage components that industrial distributors supply, rod ends (or Heim joints) play a critical role across a wide range of applications — from agricultural equipment to specialty vehicles, industrial machinery to recreational products.
Despite their widespread use, rod ends are often treated as commodity items, with selection driven by price or availability rather than performance optimization. This “lack of a strategy” can lead to premature wear, misalignment issues and, ultimately, equipment failure — which reflects poorly on the equipment manufacturer, the distributor and the component manufacturer.
This article outlines how to approach rod end selection thoughtfully, ensuring that the chosen product matches the real-world demands of the application.
Why Rod End Selection Matters
Rod ends are deceptively simple components that serve as vital linkage points in mechanical systems. Their main role is to transmit load while accommodating angular misalignment between connected parts. This dual function makes them critical to ensuring smooth motion and system durability.
Selecting the wrong rod end can lead to issues like:
- Increased friction and binding
- Premature wear of the bearing surfaces
- Excessive play, causing loss of precision
- Fatigue failure under repeated stress
As distributors, helping customers navigate these challenges by specifying the right rod end can solidify your role as a trusted advisor, rather than just a parts supplier.
Start with Load: But Don’t Stop There
It’s common to begin rod end selection by considering load capacity. While this is a logical starting point, it shouldn’t be the only factor.
Rod ends are designed to handle radial loads, which are especially important in applications where motion, vibration or impact is involved. Safety margins should always be factored in — typically, a rod end should be selected with a working load capacity significantly above the maximum expected load.
However, load capacity alone won’t prevent failure. Distributors should guide customers to consider other variables that may not be obvious at first glance.
Account for Misalignment and Movement
One of the primary reasons rod ends are used instead of simple clevises or bushings is their ability to accommodate angular misalignment.
Different rod end types allow different levels of misalignment. For instance:
- Standard rod ends typically allow limited misalignment angles — and misalignment varies from one design to the next.
- High-misalignment rod ends or those with high misalignment spacers can accommodate greater angular deflection without binding.
In addition to misalignment, it’s important to understand the type of motion in the system. Is it a simple pivot, or will the rod end experience oscillation, rotation or constant vibration? These dynamics influence whether a standard rod end or one with advanced bearing materials or special liners is required.
Material Selection: More Than Just Strength

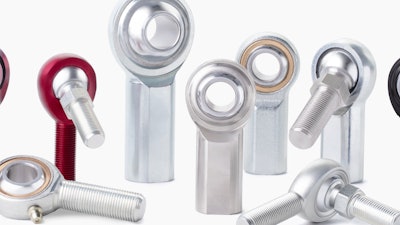

Rod ends come in a range of materials, each with advantages depending on the application environment:
- Carbon Steel: Cost-effective and strong, but could be susceptible to corrosion in challenging environments.
- Alloy Steel: Offering high strength for heavier load requirements.
- Stainless Steel: Ideal for corrosive environments or specialized applications.
- Aluminum: Lightweight, suitable for weight-sensitive applications.
In addition to ensuring the proper housing material, distributors should also guide customers in selecting the right material for the bearing liner or race (if present), as rod end construction (beyond material) can have a direct impact on total performance.
Liner or Lubrication?
The choice between lined and unlined rod ends can greatly affect performance and maintenance requirements.
PTFE-lined rod ends offer self-lubricating properties, reducing the need for regular greasing and providing smooth operation over the life of the part. These are excellent for applications where maintenance access is limited.
Metal-to-metal rod ends are often chosen for their load-carrying capacity and durability in rugged conditions — and may be specified with grease fittings when accessible for regular lubrication to avoid excessive wear.
Helping your customers weigh these trade-offs can prevent both over-specifying or under-specifying.
Environmental Factors, Application Conditions
Beyond loads and materials, the operating environment is a major consideration:
- Corrosive environments (marine, chemical exposure, etc.) demand corrosion-resistant materials or coatings.
- Dirty or abrasive conditions may call for protective seals or boots to keep contaminants out.
- Temperature extremes can affect both the material properties and the performance of bearing liners.
By asking the right questions about where and how the rod end will be used, distributors can steer customers to products that offer optimal longevity and reliability. Load requirements, material and motion type, environmental conditions/maintenance needs, cost and configuration are all key considerations.
Helping Customers Make the Right Choice
How can distributors put this knowledge to work? Consider these best practices:
- Ask detailed questions about load conditions, movement types, environment and maintenance expectations.
- Stock strategically — carry a selection of rod ends that cover common needs but can also serve niche applications.
- Partner with manufacturers — leverage factory support and companies with engineering/design capabilities to source custom or specialty rod ends when needed.
The Bottom Line
In today’s competitive industrial distribution market, adding value beyond the transaction is key to building long-term customer relationships. By understanding the nuances of rod end selection, distributors can help customers avoid costly mistakes and improve equipment performance.
Jeff Diaz is an industrial product manager at QA1. For a copy of QA1’s recent white paper, "Essential Rod End Knowledge," visit https://qa1.net/resources/rod-end-whitepaper-oem-engineers.
