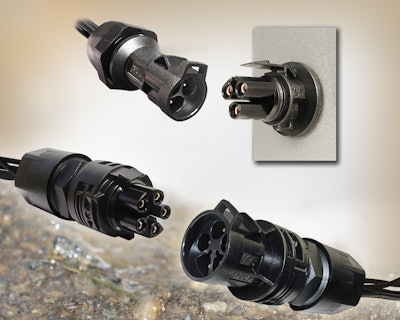

STERLING, MA — Anderson Power Products Mini PL SPEC Pak is a series of compact, environmentally sealed connectors. Mini PL SPEC Pak connectors are touch safe on both sides and feature a latching shell. Power handling capabilities up to 23 amps and 600 volts AC/DC per pole allow more power in a smaller waterproof (IP68) shell than competing solutions.
Available in both three and five pole configurations, Mini PL SPEC Pak can be used in wire to wire and wire to panel applications accommodating up to 12 AWG (2.5 mm²) wires while maintaining the compact size. Gold plated contacts down to 24 AWG (0.25 mm²) are suitable for power or signal needs. Optional sequencing capabilities are available for design flexibility.
