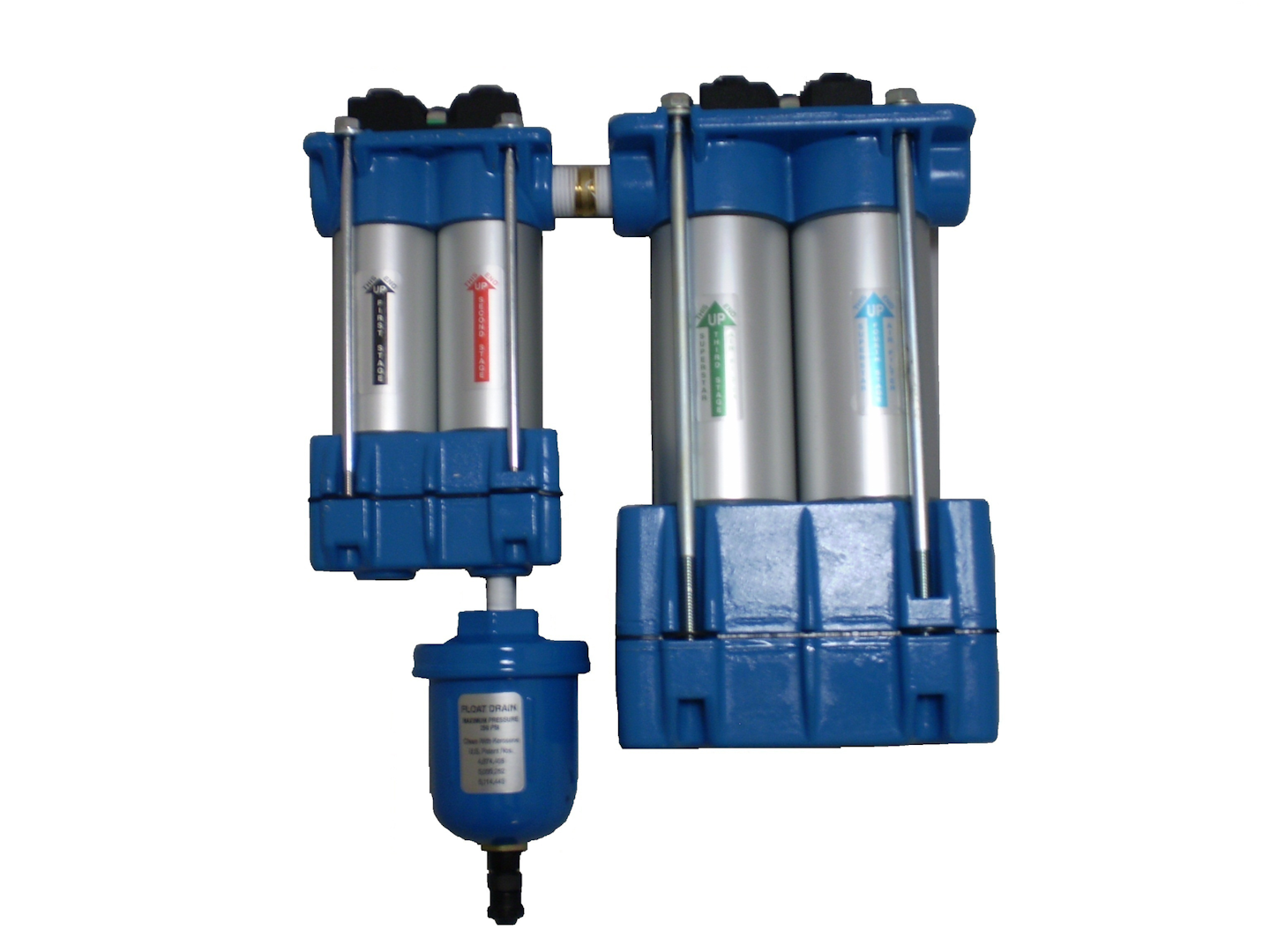

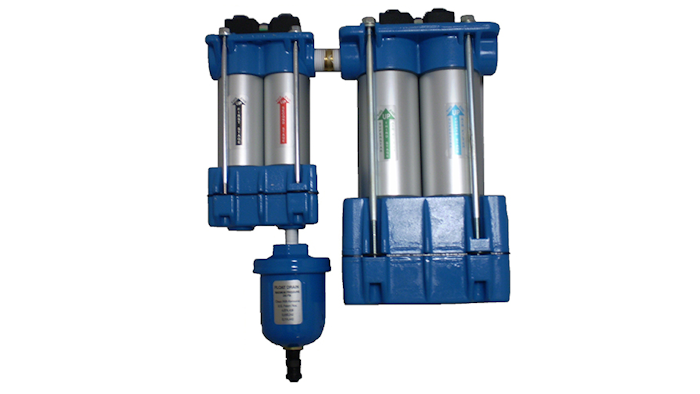

MAZEPPA, MN — The .01 Micron SuperStar Filter is designed to provide clean, dry, compressed air resulting in the removal of any vapors and contaminates down to .01 micron.
A Walmec North America product, the .01 Micron SuperStar Filter is a four-stage filtration system that has a .01 micron rating, with flow ranges of 50 SCFM, 75 SCFM, or 100 SCFM, and can handle pressure ratings of up to 250 PSI. The .01 Micron SuperStar Filter works best when it is installed at, or near the point of use.
The first and second stage filters remove moisture, liquids, dust, rust, scale, and other contaminants to 5 microns. An automatic float drain under the second stage filter opens and expels all collected liquids whenever an ounce or more is present. It is fully automatic with no continuous air loss. The third and fourth stages remove any remaining particles down to .01 microns as well as absorbing any remaining vapors.
The .01 Micron SuperStar Filter includes a differential pressure gauge and comes with mounting brackets. The differential pressure gauge provides a visual indication of required maintenance which is easily done by installing the appropriate service kit. No need to remove the unit from the compressed air system.
