Measuring the Electrical Conductivity of Nonferrous Metals

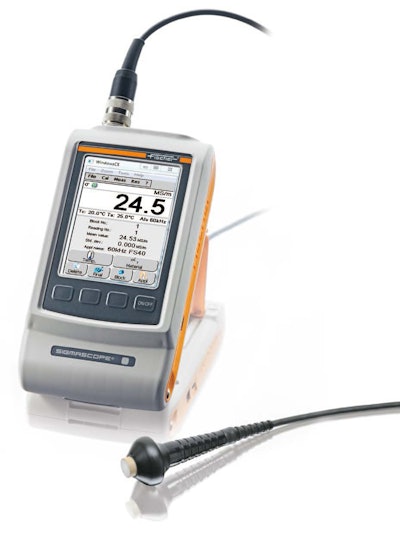

For Immediate Release: Electrical conductivity is an important material property that provides information not only about a metal's ability to conduct electrical currents but also about its composition, micro structure and/or mechanical properties. Using the SIGMASCOPE® SMP350, it is easy and quick to determine the electrical conductivity with precision and accuracy.
Measurement Principle: The SIGMASCOPE® SMP350 measures the electrical conductivity using the phase-sensitive eddy current method, which is approved by both DIN EN 2004-1 and ASTM E 1004 for determining conductivity. This kind of signal evaluation allows for contact-free determination of a substrate's electrical conductivity, even under paint or plastic coatings up to 500 µm thick. This method also minimizes the influence of surface roughness.
Applications
The SMP350 can measure the electrical conductivity of any non-magnetic metal. Furthermore, since the electrical conductivity provides data about other material properties, it is effective in a wide range of measuring applications and fields of use, including:
Quality assurance and sorting of raw materials
Authenticating of coin alloys (e.g. specific conductivity of coins)
Assessing hardness and strength of heat-treated materials
Inspecting for heat damage, material fatigue and cracks
Estimating the phosphorous content in copper
Tracking precipitation processes, e.g. for Cu-Cr alloys
Testing the homogeneity of alloys
Scrap metal sorting
Item No. CD-814103
###
