Northfield Precision Diaphragm Chuck

Available in sizes from 3" to 18" and accuracies of 0.001" to 0.00001", the precision air chuck can suite any lathe, boring machine, grinder, or VMC.

title
title

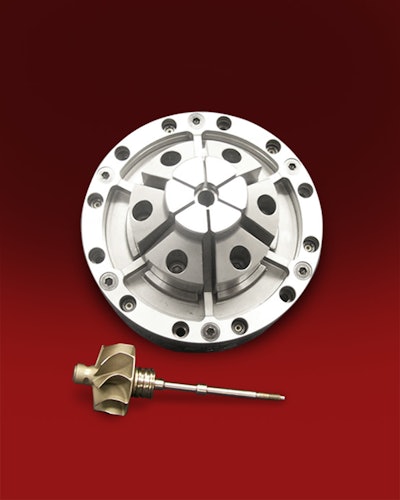

ISLAND PARK, NY — Northfield Precision Instrument Corporation, a designer and manufacture of precision workholding chucks, specializes in developing custom solutions for difficult problems. In this particular case, Northfield designed a special version of their model DPH-500 Diaphragm Chuck (.000010” TIR) with custom top tooling attached.

The center of this chuck has a deep bore that swallows and guides the tip of the part onto a spring-loaded center to support the partʼs tip while the partʼs underside rests on an axial locator (spider). Once clamped, the ODʻs of the turbo fins are ground to an exact tolerance.

Northfield Precision Instrument designs and manufactures the air chucks for any lathe, boring machine, grinder, or VMC. Models include through-hole, high-speed and quick-change. Chucks are available in SAE or metric, in sizes from 3” (76mm) to 18” (457mm). Accuracies of 0.001” to 0.00001” (0.254m) are guaranteed. Custom workholding chucks and jaws are available and FREE engineering assistance is offered.
