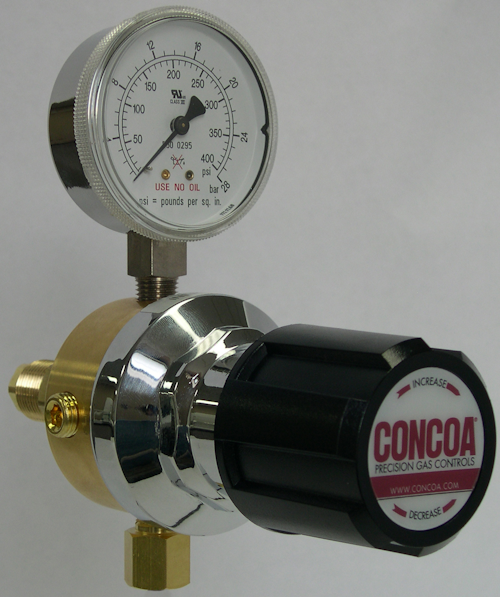

Rear-Inlet Pipeline Regulator

The 9940 series industrial regulator incorporates a new high-flow encapsulated soft seat, which has a low cracking pressure. This coupled with a large orifice size enhances the safety and productivity of low-pressure fuel gases.

title
title

Virginia Beach, VA - CONCOA has introduced a new industrial pipeline regulator designed to exceed heavy heating and cutting pressure and flow requirements. The 9940 series industrial regulator incorporates a new high-flow encapsulated soft seat, which has a low cracking pressure. This coupled with a large orifice size enhances the safety and productivity of low-pressure fuel gases. With adequate supply, this enables use of larger heating heads to maximize BTU output. Configured with a 65 mm neoprene diaphragm the 9940 provides stable pressure control. The 9940 incorporates CONCOA’s proven capsule technology [max inlet 450 PSIG (30 BAR)]. The encapsulated seat provides a high cycle life due to the integral positive pin stop that prevents the seat from being deformed. CONCOA’s capsule seat technology also surrounds the seat with a 55-micron sintered filter to prevent debris from damaging the seat. The encapsulated seat is a CONCOA innovation that combines ten to twelve seat components into one assembly, which extends the service life of the regulator.

For more information, please visit www.concoa.com.
