New Permanament Magnent Pulley Works With All Belt Conveyor Systems

The Dura Drive SPM is a compact and robust all-in-one drive component that can be used with all types of belt conveyor systems, including plastic modular belt systems.

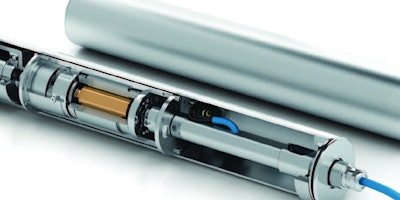

Id 25491 Dura Drive Spm

GRAND RAPIDS, MI — Sparks Belting Company, a division of JSJ corporation, introduces its all new synchronous permanent magnet pulley, the Dura Drive SPM.

The Dura Drive SPM is a compact and robust all-in-one drive component that can be used with all types of belt conveyor systems, including plastic modular belt systems. The Dura Drive SPM is highly energy efficient, exceeding IE4 efficiency limits and is designed to meet IE5 requirements. The Dura Drive SPM delivers high torque and belt pull that remains constant over a wide range of operating speeds.

The permanent magnet design is the key to the high efficiency and high power density of the Sparks Dura-Drive SPM motorized pulleys. The motors are available in 3.19 and 4.39-inch diameters and can be run either sensor-less in speed control mode or with feedback in combination with a servo drive in position, speed or torque control (sensor-less position control is also possible with some servo drives). The Dura-Drive SPM motors are aimed at applications in logistics with high dynamic requirements or as replacements for servo motors in machine building and general automation. They can also be used as a space-saving alternative to a gear motor.

Dura-Drive SPM pulleys run OIL-FREE with no possibility of oil leaks. This solves one of the main problems of motorized pulleys, especially in food applications. They have a simple, one-piece design with all moving parts enclosed in the pulley shell.

The all new Dura-Drive SPM motorized pulleys are available immediately only from Sparks Belting.
