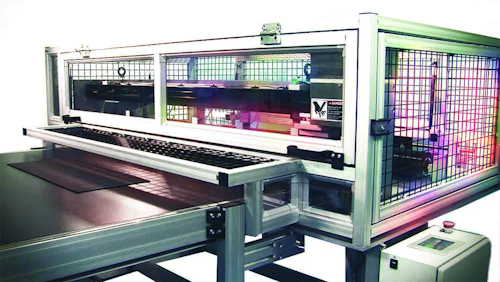

Shear Cut Traveling Knife Assembly

This cut to length unit from AZCO Corp. is built to feed the material all the way through the knife assembly.

title
title

Fairfield, NJ – AZCO Corporation has designed a shear cut traveling knife assembly ideal for material 1400mm wide and 3mm-55mm thick. This cut to length unit is built to feed the material all the way through the knife assembly. A precision ground urethane drive top roller supplies a force which provides positive traction between the material and the drive system. The brushless servo motor provides high accuracy and low maintenance. A 1400mm [55”] traveling knife assembly shear cuts the material to size. The knife assembly is servo driven with linear guides for extra strength and support. Easy to use, the unit can be bolted right into an existing process. A color touch screen is used to set up the unit.  PLC controls run the servo motor drive and the entire process.  To interface the unit to the process, a loop sensor is used. When material is present, the unit will operate; if there is no material, it will wait.

For more information, please visit www.azcocorp.com.
