Introducing the New Fischerscope ST200

Automated Scratch Testing System for Analyzing the Adhesion and Cohesion Strength of Coatings For Immediate Release: The FISCHERSCOPE® ST200 is a progressive load scratch tester for analyzing the adhesion and cohesion strength of coatings according to ASTM C1624, ISO 20502, and DIN EN 1071-3. The instrument is perfectly suitable for measurement in development, quality assurance, incoming ins...

Id 34994 Fischerscope St200

Automated Scratch Testing System for Analyzing the Adhesion and Cohesion Strength of Coatings

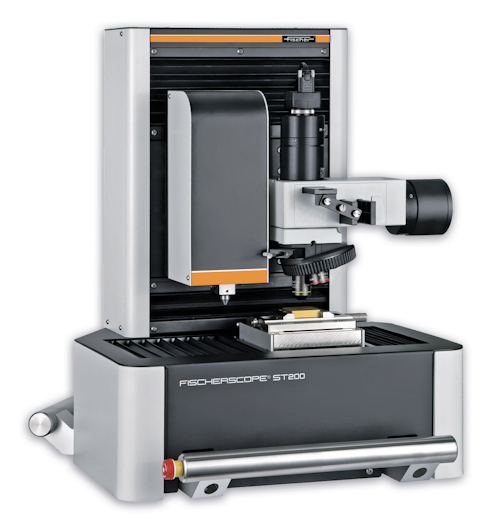

For Immediate Release: The FISCHERSCOPE® ST200 is a progressive load scratch tester for analyzing the adhesion and cohesion strength of coatings according to ASTM C1624, ISO 20502, and DIN EN 1071-3. The instrument is perfectly suitable for measurement in development, quality assurance, incoming inspection and process control.

Typical fields of application:
• Hard material coatings (PVD, CVD)
• Automotive engine and drive train components
• Electroplated coatings (decorative, functional)
• Characterization of hard anodic coatings
• Materials used specifically in medical technology applications
• Electronic components, connectors, bond wires, etc.
• Plasma-applied coating systems

Features:
• Various measurement modes: constant load, progressive load, incremental load
• Three analyzing methods: optical microscopy, friction force measurement and acoustic emission measurement
• Motor driven XY-stage and Z-axis
• Measurements on curved surfaces with motion feed-back control
• Automatic image scan of the whole scratch
• Diamond indenters of various geometries
• Optical filters for contrast improvement
• Integrated electronics, no external control unit necessary
• Two microscope objectives, optional: four additional objectives
• Data and image capturing over the whole scratch length
• Easy creation of test reports
• Optional: customized sample holders
• Item No. PA-F605812

###
