Introducing the New byko-drive XL

Automatic Film Applicator For Immediate Release: The byko-drive XL Automatic Film Applicator has the most flexible design to perform drawdowns of coatings and inks. The dry film appearance is impacted by drawdown speed and pressure on the applicator tool. A programmable speed control from 5 - 500 mm/sec. in 1 mm/sec. increments is standard. Interchangeable weights apply pressure across ...

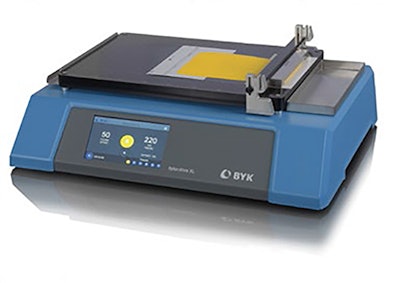

Id 32847 Byko Drive Xl Web

Automatic Film Applicator

For Immediate Release:

The byko-drive XL Automatic Film Applicator has the most flexible design to perform drawdowns of coatings and inks. The dry film appearance is impacted by drawdown speed and pressure on the applicator tool. A programmable speed control from 5 - 500 mm/sec. in 1 mm/sec. increments is standard. Interchangeable weights apply pressure across the entire length of the applicator for a consistent film thickness. The push bar is designed to accommodate a wide variation in wire-rod sizes, applicator bars, applicator frames, and film casting knives.

The touchscreen display makes it easy to program the operating parameters: traverse speed, start position, and stroke length. There are six memory locations to save routine settings. The byko-drive XL has vacuum plate and glass plate platform versions. The vacuum plate and glass plates are user interchangeable for labs that need both platforms.

Features:
*Adjustable push-bar gap clearance for thicker substrates or large height applicators
*Two year warranty and CE/UL/CSA certified
*Metric and English unit scales engraved on vacuum plate to easily set start position and stroke length
*Convenient applicator storage shelf
*Vacuum plate can be used with an external vacuum source
*Can accommodate virtually all applicators and wire-wound rods without additional hardware
*Drip pan for easy clean-up
*Item Nos. DP-B2131, DP-B2132

###
