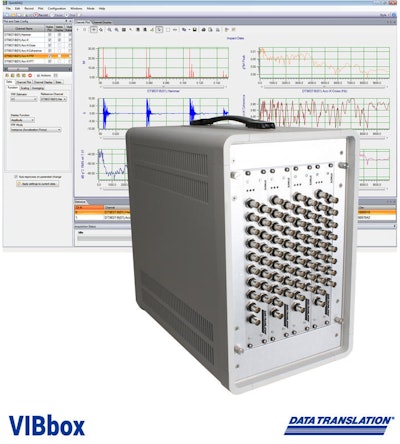

VIBbox is a high-accuracy, high channel count, dynamic signal analyzer system for sound and vibration applications. VIBbox packages four DT9857E modules in a rugged enclosure for field use. It includes 64 IEPE 24-bit Delta-Sigma sensor inputs, eight 32-bit D/A stimulus outputs, four 32-bit C/Ts, 4 tachometers, 64 DIO lines, and 8 measure counters.
Key Features:
• Four DT9857E modules in a rugged enclosure providing 64 IEPE analog input channels
• Input sampling rate up to 105.4kS/s/channel
• 24-bit Delta-Sigma ADC per channel…eliminates aliasing for extremely accurate measurement
• Eight, 32-bit stimulus waveform output channels with output rates up to 216kS/s/channel
• Programmable input range up to ±10V
• 32 digital input lines and 32 digital output lines
• Four 32-bit C/Ts, 4 tachometers, and 8 measure counters
• External power supply included (+7.5VDC to +24VDC)
• Four STP25 Screw Terminal Panels and Cables included for connecting DIO, C/Ts, and tachometers
• Free QuickDAQ with Advanced FFT Analysis application included
• Free Signal Processing Component Library for .NET included
