Introducing the NEW Mitutoyo Laser Scan Micrometers–

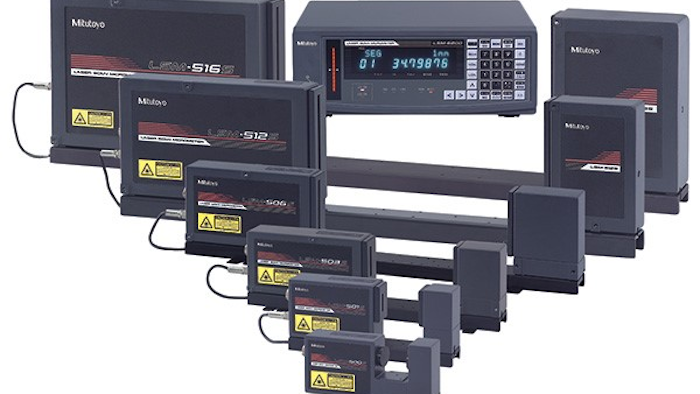

These NEW Laser Scan Micrometers are available in a variety of models with
measurement that can be utilized in diverse applications
For Immediate Release…With a wide variety of models, LSM measurement can be utilized in diverse applications. The LSM-500S can measure ultra-fine wires as thin as .0002" (0.005mm) in diameter to a resolution of .000001" (0.00001mm), and the LSM-512S can measure cylindrical workpieces with a diameter as large as 4.7" (120mm). Options for measuring larger diameters are available.
• Ultra-high speed 3200 scans/sec
• Statistical calculation mode
• RS-232C and I/O interfaces are standard
• Capable of handling high speed applications or workpieces that vibrate
• Includes Quicktool*, a free software package that makes operation of LSM setting simple
*For use with customer supplied PC and RS-232C cable
Ultra-High Accuracy Laser Scan Micrometer - LSM-902/9600
Features:
• High-accuracy inspection of pin
& plug gages & other tight-tolerance parts
such as medical & aerospace
• Ultra-high accuracy: Linearity of ±0.5µm for entire range
• Statistical calculation mode
• Ultra-high repeatability of ±0.05µm
• Data output to PC or other external devices from display unit
Bench Top Laser Scan Micrometer - LSM-9506
Features:
• Integrated display and measuring unit into one unit
• Statistical calculation mode
• RS-232C interface, I/0 interface, & SPC output interface are provided as standard
