Introducing the New PowerMAX 365

UV-A LED Panel Flood Lamp Ideal for NDT Inspection For Immediate Release: The PowerMAX 365 Series lamps are ideal for NDT inspection booths, fluorescent penetrant and magnetic particle inspection, screening of fluorescent particles, wash station inspection and many other applications that require maximum uniformity of UV-A coverage over a large area. Standard-intensity models meet ASTM UV-A ...

Id 27881 Pm 1600 Uv Back To Back Med

UV-A LED Panel Flood Lamp Ideal for NDT Inspection

For Immediate Release: The PowerMAX 365 Series lamps are ideal for NDT inspection booths, fluorescent penetrant and magnetic particle inspection, screening of fluorescent particles, wash station inspection and many other applications that require maximum uniformity of UV-A coverage over a large area. Standard-intensity models meet ASTM UV-A intensity and wavelength specifications for FPI and MPI. A certificate of compliance for both UV-A output and wavelength requirements is supplied with each unit.

The PowerMAX 365 Series lamps are available in four models: high-intensity and standard-intensity versions, each with or without a black light filter. All four models have a large coverage area of 15 inches by 6 inches (38 cm x 15 cm), with a minimum UV-A intensity of 2,000 µW/cm².

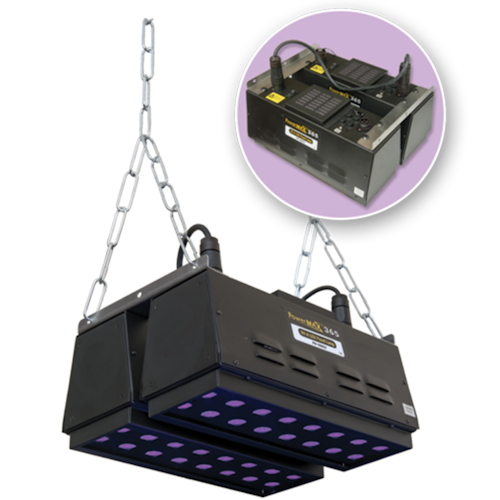

For applications requiring extremely large coverage areas, the PowerMAX™ 365 can be quickly ganged together longitudinally or back-to-back using customized, easy-to-install connecting plates and brackets.

Features
Low visible light emission—less than 0.5 foot-candle (5 lux)
Thermal cut-off circuitry prevents lamp from going out of compliance when internal temperature exceeds specifications
Certificate of compliance and full serialized validation report for both output and wavelength measurements supplied with every lamp
Meets ASTM UV-A intensity and wavelength specifications for LPT and MPT
Item Nos. UV-152709, UV-152711, UV-152713
###
