5-Position Mid Power SPEC Pak

The compact size, power handling capabilities and safety features of the 5-position Mid Power SPEC Pak are ideal for a wide range of applications including 3 phase AC power distribution, motors, controllers and industrial equipment.

Id 14651 5 Pmp Pr

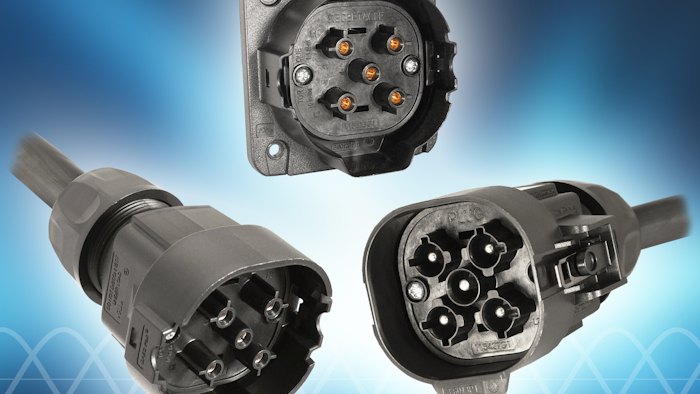

STERLING, MA — Anderson Power Products (APP) has launched a 5-Position Mid Power SPEC Pak connector. This 3-phase AC connector is the newest addition to our sealed SPEC Pak line. The compact pin and socket design has power handling capabilities 30 percent greater than the comparable IEC 60309 connector and is 50 percent smaller in size.

The compact 5 Position Mid Power SPEC Pak accepts up to 8 awg wire for power handling up to 40 amps (CSA) and 60 amps (UL). Its keying feature allows multiple connectors to be used side-by-side while preventing circuits with incompatible voltage from being connected. The sealing gland protects the connector from ingress of dust and water (IP68) accommodating both individual and jacketed cable. The shell housings feature robust metal latches to keep the connectors securely mated.

The compact size, power handling capabilities and safety features of the 5-position Mid Power SPEC Pak are ideal for a wide range of applications including 3 phase AC power distribution, motors, controllers and industrial equipment. For more information visit our website.
