Environmentally Sealed Connector

The 3 Position Mini PL connector features a manual release latch to prevent accidental un-mating and is touch safe on both sides (per UL 1977 section 10.2).

title
title

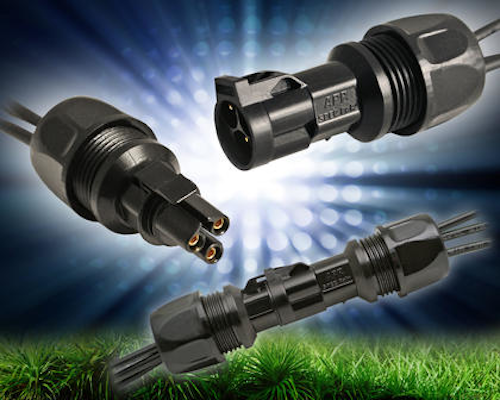

Sterling, MA - Anderson Power Products introduces the 3 Position Mini PL connector. This compact, environmentally sealed (IP68) connector is capable of 22 amps at 600 volts (UL). The 3 Position Mini PL connector features a manual release latch to prevent accidental un-mating and is touch safe on both sides (per UL 1977 section 10.2). Its rugged shell is fire resistant (UL94 V0) and weather resistant (UL746C F1). 3 Position Mini PL leverages PowerMod® pin and socket contact technology. These 30µ gold plated contacts will accommodate wire sizes from 24 to 14 awg (0.50 to 2.50 mm²). The pins are available in three length providing sequencing capabilities for design flexibility.

For more information, please visit www.andersonpower.com.
