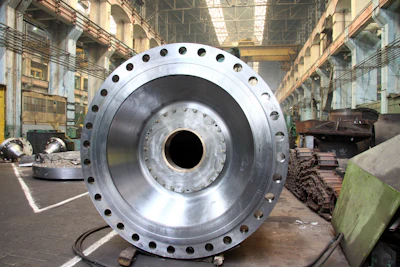

In the shipbuilding industry, high-quality forgings such as long shafts, step shafts, propeller components and other shaped parts are essential for the construction of cruise liners, super tankers, LNG carriers, drill ships and other vessels.
These precision-forged parts are often found in applications where it is critical to withstand challenging conditions. Open die forgings and seamless rolled rings have a greater lifespan than other products due to their strength and durability and are less prone to cracking or warping, making the option ideal for critical components requiring high tensile strength. Depending on the metal and alloy, the rings are also resistant to thermal and chemical damage, which further extends longevity while reducing the need for maintenance, repair and replacement.
Seamless rolled rings can be used in the manufacture of propeller shafts to ensure steadfast strength and reliability amidst the rigors of the marine environment; steering systems in ships to furnish precision and durability essential for effective navigation and maneuverability; and anchor systems to secure steadfast anchorage across diverse marine conditions in order to safeguard vessels against shifting tides and currents.
With robust, durable, high-performance construction, seamless rolled rings are vital to marine engineering and shipbuilding endeavors, fortifying vessels to traverse the world’s oceans with unparalleled resilience and reliability.
For shipbuilders, obtaining large heads and seamless rolled rings in a timely manner remains a significant challenge, however. Currently, it may take many months to receive the forged components after placing an order. This delay can have a severe impact on the production and maintenance schedules of firms that depend on replacement parts.
Rings are typically provided with a rough surface finish, which necessitates the use of CNC machining to achieve the required level of smoothness. This poses a challenge for machine shops with a high workload, as allocating machine time for finishing inevitably leads to a decrease in production speed and an increase in costs, ultimately impacting the end-use cost or profitability.

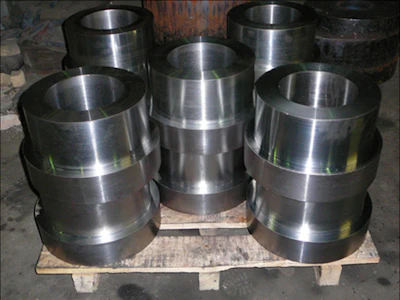

Fortunately, shipbuilders can rely on industry-leading forging specialists capable of producing large, custom, seamless rolled rings and contoured seamless rolled rings with the required surface finish in under two months. One example, All Metals & Forge Group, an ISO 9001:2015 and AS9100D manufacturer of custom and standard open die forged parts and seamless rolled rings can cost-effectively deliver these components with the required finish within 8-10 weeks.
The range of forged products includes rings, discs, hubs, blocks, shafts (including step shafts or with flanges), sleeves, gear blanks, cylinders, flats, hexes, rounds, plates and custom shapes. Carbon steel, alloy steel, stainless steel, nickel, titanium and aluminum are among the materials used for forging. These forgings meet rigorous industry specifications such as ASTM, AMS, AISI, ASME, Boeing, SAE, GE, DIN, ASME B 16.5, ASME B16.47 and API 6A.
When speed and quality are essential, the shipbuilding industry can reap the advantages of an accelerated process for obtaining flawless rolled rings.

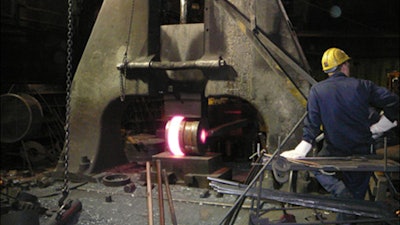

The Benefits of Open Die Forgings
One of the chief advantages of open die forging is the customization it offers in the forged parts and seamless rolled ring manufacturing process.
According to Lewis Weiss, President of All Metals & Forge Group, open die forging is ideal for providing large, custom parts. “We can produce seamless rolled rings or contoured rolled rings up to 200 inches in outside diameter and custom forgings up to 40 feet long or 80,000 lbs.,” said Weiss. “We can also produce forgings for drive and tending ends in diameters that cover the sizes needed in the shipbuilding industry.”
All Metals & Forge Group has been manufacturing and selling open die forgings and seamless rolled rings for more than 50 years.
While open die forging is typically associated with larger, simpler-shaped parts like bars or blanks, the process enables the creation of “custom-designed” metal components.
According to Weiss, open-die forging facilitates the production of seamless rolled rings to exact specifications with optimized mechanical properties and structural integrity. He notes that the rings can be produced in a variety of alloys, sizes and shapes specific to the requirements. Forged parts finish machined by machine shops are equally sound in structural integrity and required physical properties.
The forging of seamless or contoured rolled rings is also cost-effective since the process reduces material waste and manufacturing costs. Since the rings are constructed from a single metal piece using a specialized ring rolling machine, there is no need for welding or assembly, saving time and labor. The seamless rolled rings are also more structurally sound because they create a circular grain flow in the material, following the shape of the ring, which increases strength and integrity, creating a refined grain structure. This can enhance the material's fatigue resistance and overall performance, resulting in a stronger, more durable final product compared to other methods of ring making, such as cutting from plate.
Near Net Shape Parts with Finer Surface Finish
Typically, when heads, cylinders, shafts or seamless rolled rings are forged, they are often left in an unprocessed state with a rough surface measured at approximately 500 RMS. As a result, significant CNC machining time is required to achieve a smoother surface for the finished machined part. This poses a challenge for machine shops as the allocation of machine time for finishing these rough parts directly affects production efficiency and delivery time to the client.
To optimize efficiency and reduce costs, All Metals & Forge Group frequently provides near-net-shaped forged parts with more refined surface finishes.
“Typically, we provide a 250 RMS surface finish. We can even provide 125 RMS. We can also drill holes and do contour forgings as needed,” said Weiss.
“Some forge shops only offer a raw unmachined part. We produce a rough machine part, saving machine shop time and equipment wear and tear since we have already taken off the first rough cuts off the ring or forged parts,” he added.
In addition, the company conducts ultrasonic testing at zero expense to the customer to guarantee the absence of internal cracks, pits or voids. This instills the utmost confidence in the quality of the parts, according to Tim Grady, Management Consultant for All Metals & Forge Group.
“In many cases, All Metals & Forge Group can offer ultrasonically tested parts that are more affordable than raw forged rings,” said Grady.
Streamlining Delivery
In today’s market, the procurement of forged seamless rolled rings usually takes a considerable amount of time, from 20 weeks to as much as a year, as there are long lead times in receiving the necessary steel from mills.
“When replacement parts are required, a delay of a year or more is not acceptable,” said Grady. “Even 20+ weeks is a serious issue.”
To expedite the process for customers, All Metals & Forge Group has established strategic partnerships within the industry, enabling the company to deliver many custom forgings in a timeframe of eight to 10 weeks. Furthermore, to minimize any potential production downtime for machine shops, the company strives to provide accurate quotes within 48 hours.
Positioning for the Future
The need to acquire seamless rolled rings will only increase in industries like shipbuilding that require high-quality custom-forged components that can safely withstand extreme forces with minimal repair or replacement. In these cases, working with an expert forger who can expedite the process will convey a significant advantage.
