A gypsum board manufacturer has two identification needs. Individual sheets need the details that must accompany them after a bundle is opened. The finished bundle needs information that warehouse and distribution staff can find without separating the stack.
Those requirements shape the printing installation. A message may look clear while a board passes along the conveyor, then become hidden during stacking or damaged in handling. At production speed, its position and durability depend on how the printer works with the moving surface, the ink and the downstream equipment.
Start by deciding who will read the information and at which stage of the board’s journey.
What should gypsum board marking tell the reader?
Gypsum board marking may include a product designation, dimensions, manufacturing location and a date or batch reference. Each field should have a purpose in production, stock handling or traceability.
Warehouse staff checking an order need to recognize the board type quickly. A quality technician investigating a reported defect needs a reference that leads to the appropriate manufacturing records. A layout that gives both users what they need may require a prominent product description with a smaller production code nearby.
The individual sheet and bundle do not necessarily need identical messages. Large text on the bundle helps with storage and dispatch; the information required after unpacking must remain on the sheet itself.
A batch reference also needs a maintained record. Printing a number creates a physical identifier, but staff must be able to retrieve the production information associated with that number.
Choosing a position that remains useful after stacking

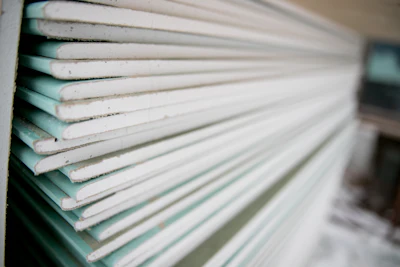

Assess placement with the finished stack in mind. A broad face offers printing space while the sheet is exposed, but most faces disappear from view once boards are stacked. An edge or exposed area of the bundle may be easier to read in storage, depending on available space and required character size.
The substrate changes with the location. Paper facing, a coating, exposed gypsum and protective packaging each present different conditions for ink adhesion and print definition. A sample produced on one surface does not establish performance on another.
The mounting arrangement needs similar attention. The printhead requires clearance from passing boards, protection from accidental contact and access for cleaning. Where thicknesses or formats change, the installation must keep the intended surface within the printer’s operating range.
These decisions are best made alongside the conveyor and stacking layout. Moving a printhead later may affect its mounting, sensor position and the distance available for drying.
How do drywall marking systems stay aligned with moving boards?
In a triggered printing installation, a product sensor detects the approaching board. The controller uses that detection point and a configured offset to determine where the message should begin.
Movement feedback lets printing follow the surface as speed changes. An encoder supplies pulses representing travel increments, which the controller uses to coordinate ink deposition. Accurate feedback helps maintain the message's horizontal proportions during acceleration or deceleration.
For drywall marking systems, the source of that feedback matters. A measuring wheel that slips or a conveyor signal that doesn't accurately represent board movement can shift or distort the print even when the printhead is functioning correctly.
The ink is applied without contact. Large-character drop-on-demand equipment fires selected nozzles as the surface passes, building up text or graphics. Smaller, more detailed messages may call for higher-resolution equipment.
Assess the complete layout at the required operating speed. A printer's maximum speed does not define what it can reproduce at every combination of resolution, character size and message length.
What limits gypsum board printing quality at high speed?
The demands on gypsum board printing become clearer when you consider the printing point alongside the next handling operation. The mark needs adequate definition when it is applied and enough time to resist the contact that follows.
Suppose a board travels at 120 meters per minute, equivalent to two meters per second. If the printed area meets another surface one meter downstream, only half a second separates printing from contact. This illustrative calculation gives the supplier a drying requirement to assess against the proposed ink and substrate.
Ink that spreads excessively can merge neighboring strokes, making small characters difficult to distinguish. Poor adhesion can leave a message vulnerable to rubbing. Dust on the board or accumulated around the printhead can introduce further variation, so accessible inspection and approved cleaning procedures should be part of the installation design.
Print distance must also remain within the equipment’s specified range. Board movement that changes the gap between the surface and printhead can affect placement and definition. The appropriate response may involve adjusting the mounting, improving product guidance or selecting equipment better suited to the available conditions.
Changing the message at the right point in production
A new board specification may require a different description, dimensions and production reference. If several printing positions are involved, changing them independently adds work and increases the possibility that one message will be overlooked.
Connected materials coding and marking systems can receive approved job data from production software and place it into prepared templates. This keeps the layout consistent while the variable fields change.
Timing requires care. Boards from the previous run may still be traveling between production stages when the next order is selected. The control sequence must account for those boards so that the new message starts with the corresponding product.
Inspection of the first boards confirms that the description, production reference and placement agree. Where cameras are used, suitable software can check for missing print or compare readable contents with the expected message. Staff need a defined response when that check fails, including how to identify and separate affected boards for examination.
How does building materials coding and marking support dispatch?
For building materials coding and marking to support distribution, bundle identification must match the goods inside. Splitting or rebuilding a bundle requires updating its associated records.
When evaluating industrial coding and marking solutions, follow representative boards through stacking and handling. Examine whether the mark remains readable, whether staff can find it and whether its production reference retrieves the intended record.
Include a product change and a routine stop in the trial. The plant needs to see how the system resumes work and how it prints during an uninterrupted run. Acceptance should reflect those conditions: a correct message in the intended position, legible after handling, at the speed the line requires.
